Thermal Shock Chamber

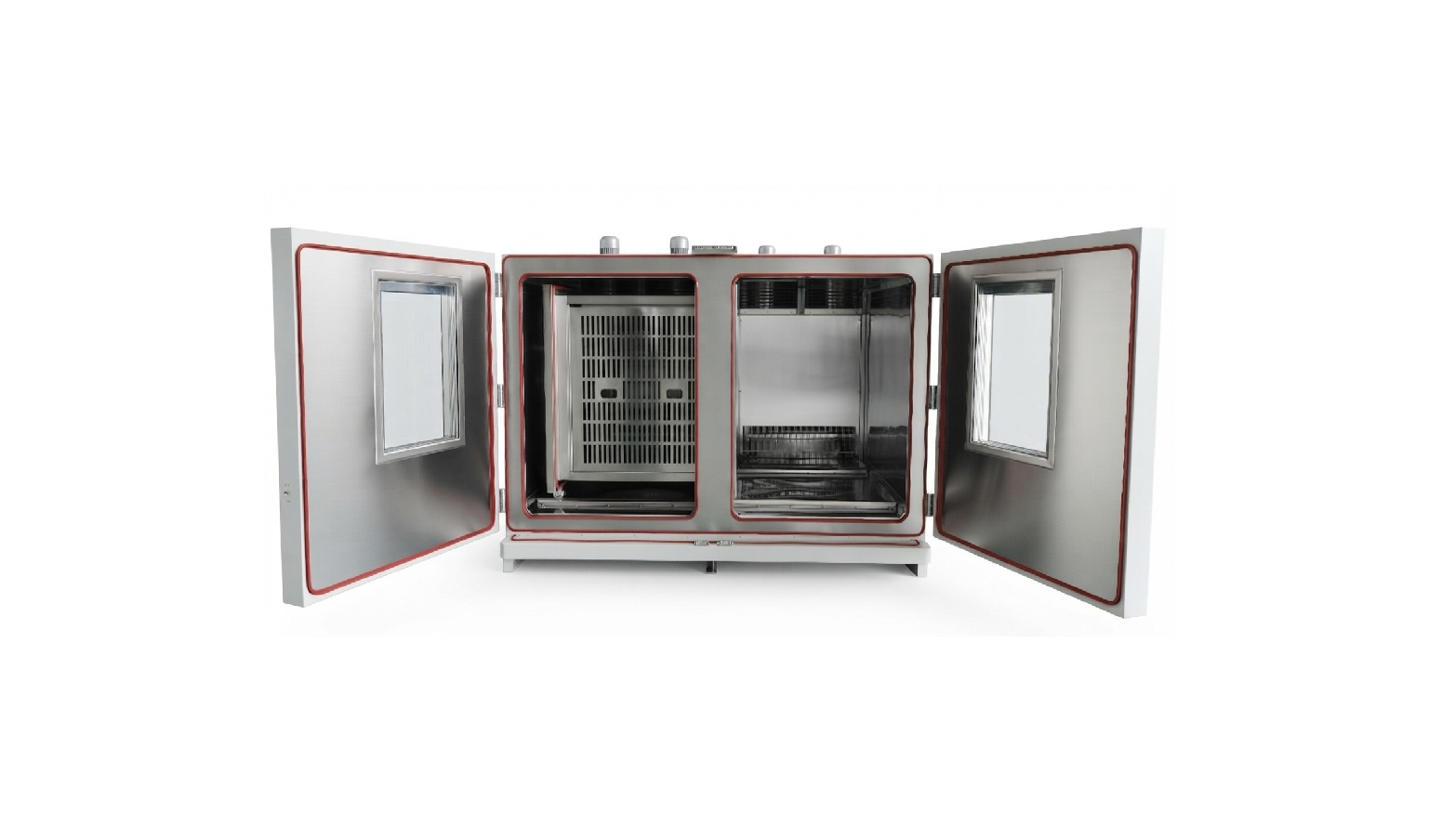

BIA Climatic Air-to-Air Thermal Shock Chamber

BIA Climatic temperature shock chambers are designed for demanding environmental and reliability testing across the electronics, semiconductor, automotive, aerospace and battery industries. The systems support rapid temperature transitions and repeatable test conditions, with configurations available for both air-to-air thermal shock and conventional temperature shock applications.

Compliance with International Test Standards

The temperature shock chambers can be configured to meet major international and industry-specific environmental testing standards, including:

• IEC 60068-2-14 – Change of Temperature / Temperature Shock
• GB/T 2423.22 – Temperature (Temperature Shock) Test
• GJB 150.5A – Temperature Shock for Military Equipment
• GJB 548B – Temperature Cycling for Microelectronic Devices
• MIL-STD-883, Method 1010.9 – Temperature Cycling
• MIL-STD-750, Method 1051.6 – Temperature Cycling (Air-to-Air)
• RTCA/DO-160G – Temperature Shock Testing for Airborne Equipment
• JESD22-A104 – Temperature Cycling for Semiconductor Devices



Custom test configurations can also be developed to meet specific customer or corporate testing requirements.



Key Features

Wide Chamber Capacity

Standard basket capacities are available from 80 L to 3000 L, with customized solutions and walk-in temperature shock chambers available for larger test specimens.

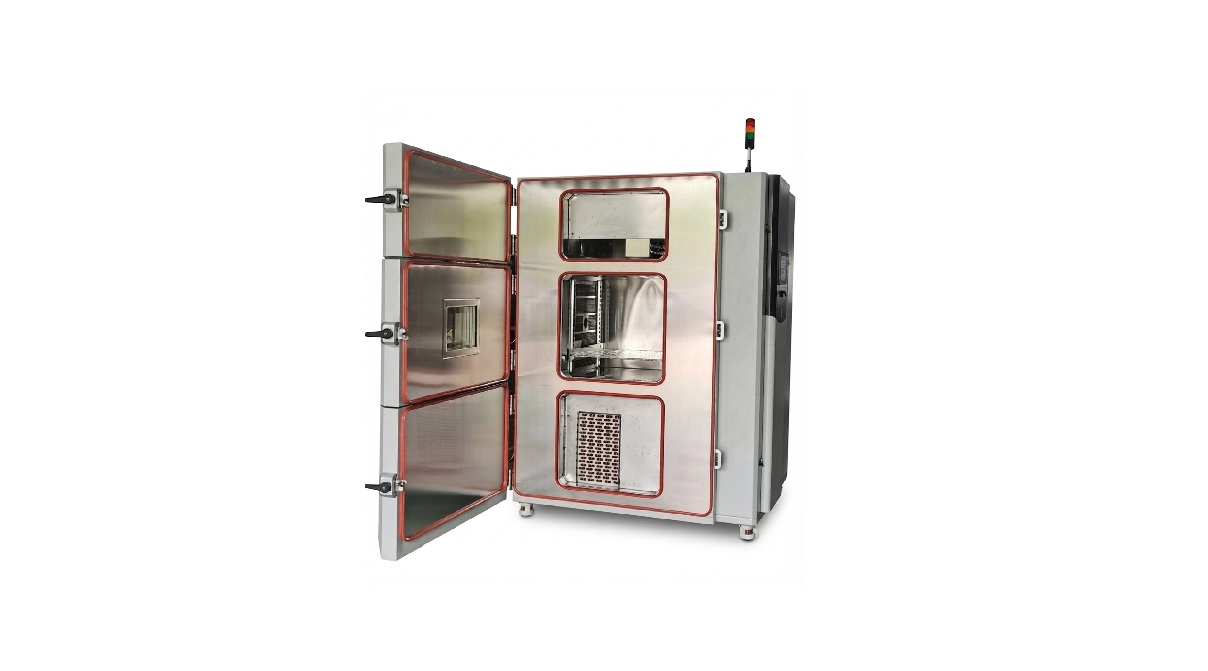

Two-Zone & Three-Zone Configurations

Available in two-zone and three-zone designs, providing flexible solutions for different sample sizes, test profiles and laboratory requirements.

Wide Temperature Range

Temperature shock testing can be performed from -65°C to +180°C, with pre-cooling and pre-heating zones capable of reaching approximately -80°C to +200°C, depending on configuration.

Rapid Temperature Transfer

Designed for rapid movement between hot and cold zones, with basket transfer times of less than 1 minute on applicable configurations. This enables efficient air-to-air thermal shock testing and rapid temperature transitions.

Programmable Test Profiles

The control system supports multi-step test programming, allowing users to create complex temperature cycling and thermal shock profiles for fully automated continuous testing.

Dual-Mode Operation

The chamber can support both high/low-temperature testing and temperature shock testing. This provides greater equipment utilization and flexibility for laboratories with multiple environmental testing requirements.

Optional Environmental & Monitoring Functions

Optional configurations include dry-air purge, specimen temperature control, programmable I/O, specimen power supply interfaces, load racks, multi-channel data acquisition and remote communication.

IP Camera & Remote Monitoring (Optional)

An integrated IP camera can be configured to monitor the test specimen during operation. This allows users to remotely observe product conditions while correlating visual information with temperature and test data.



———————————————————————————————————–

Let’s Build the Right Temperature Shock Solution

Every reliability test has different requirements. At Microrel Solution, we work closely with our customers to develop temperature shock and air-to-air thermal shock systems matched to their test specifications, product size and laboratory environment.

From rapid temperature transfer and programmable test profiles to monitoring, data acquisition and customized configurations, we provide a complete approach to temperature shock testing.

Talk to our engineering team about your application.
